CNN Implementation

CNN Implementation#

Training CNN Model using MNIST Dataset For this demonstration we will be using the MNIST dataset, which is a popular dataset for training deep learning models.#

Import Standard Libraries#

import torch
import torch.nn as nn
import torch.nn.functional as F from torch.utils.data
import DataLoader
import torchvision from torchvision
import datasets, transforms
import random
import numpy as np from sklearn.metrics
import confusion_matrix, classification_report, accuracy_score import matplotlib.pyplot as plt %matplotlib inline torch.backends.cudnn.deterministic=True torch.set_printoptions(sci_mode=False)
import time
from tqdm.notebook
import tqdm

torchvision.datasets module provides a variety of datasets that are commonly used for training machine learning and deep learning models. These datasets are preprocessed and can be easily integrated into PyTorch workflows for tasks such as image classification, object detection, and more. Example datasets include: - MNIST - CIFAR10 - CIFAR100 - ImageNet

# `transforms` is used to apply augmentation techniques and modification to the image data (e.g, rotate, resize, normalization, etc.).
# for this one, let's just convert the image arrays to tensor.
transform = transforms.ToTensor()
train_data = datasets.MNIST(root='data', train=True, download=True, transform=transform)
test_data = datasets.MNIST(root='data', train=False, download=True, transform=transform)

# the training data have 60,000 images, let's take a small portion from it for the validation.
# what's the importance of validation data?
train_data

# unseen images
test_data

# 50,000 for training and 10,000 for validation
train_set, val_set = torch.utils.data.random_split(train_data, [0.8, 0.2])

# function to set the seed
def set_seed(seed):
    np.random.seed(seed)
    torch.manual_seed(seed)
    random.seed(seed)

PyTorch provides two data primitives: torch.utils.data.DataLoader and torch.utils.data.Dataset that allow you to use pre-loaded datasets as well as your own data. Dataset stores the samples and their corresponding labels, and DataLoader wraps an iterable around the Dataset to enable easy access to the samples.

set_seed(143)
batch_size = 10
train_loader = DataLoader(train_set, batch_size=batch_size, shuffle=True)
val_loader = DataLoader(val_set, batch_size=batch_size, shuffle=True)
test_loader = DataLoader(test_data, batch_size=batch_size, shuffle=False)

set_seed(143)
images, labels = iter(train_loader).__next__()
def display_image(batch):
    batch = batch.detach().numpy()
    fig, axs = plt.subplots(1, len(batch), figsize=(12, 2))
    for i in range(len(batch)):
        axs[i].imshow(batch[i, 0, :, :], vmin=0, vmax=1) axs[i].axis('off') axs[i].set_title(labels[i].numpy())
        plt.show()

For this demonstration, we will use the following architecture: it consists of two convolutional layers, each followed by its own max-pooling layer and activation function. Additionally, there are two fully connected layers, with the second layer using the softmax activation function.

Input Images#

display_image(images)
print(images.shape) # (b, c, h, w)

def calc_out(w, f, s, p):
    """ Calculate output shape of a matrix after a convolution. The results are only applicable for square matrix kernels and images only. """
    print(f'Output Shape: {(w - f + 2 * p) // s + 1}')

First Convolution Layer + Activation Function#

# The first convolution must output a 28 by 28 image size
calc_out(28, 3, 1, 1)

conv1 = nn.Conv2d(1, 32, (3,3), 1, 1)
x = F.relu(conv1(images))
display_image(x) print(x.shape)

First Pooling (MaxPooling)#

# first maxpooling must output a 14 by 14 size
calc_out(28, 2, 2, 0)

pool1 = nn.MaxPool2d((2,2), 2)
x = pool1(x)
display_image(x)
print(x.shape)

Let’s examine the feature map.#

idx = 3 feature_maps = x[idx].view((1, 32, 14, 14)).detach().numpy()
fig, axs = plt.subplots(1, 32, figsize=(12, 2))
for i in range(32):
    axs[i].imshow(feature_maps[0, i, :, :], vmin=0, vmax=1) axs[i].axis('off')

Second Convolution#

calc_out(14, 3, 1, 1)

conv2 = nn.Conv2d(32, 64, (3,3), 1, 1) x = F.relu(conv2(x)) display_image(x)
print(x.shape)

Second Pooling (MaxPooling)#

calc_out(14, 2, 2, 0)

pool2 = nn.MaxPool2d((2,2), 2)
x = pool2(x)
display_image(x)
print(x.shape) ```
```python
idx = 3 feature_maps = x[idx].view((1, 64, 7, 7)).detach().numpy()
fig, axs = plt.subplots(1, 64, figsize=(12, 2))

for i in range(64):
    axs[i].imshow(feature_maps[0, i, :, :], vmin=0, vmax=1) axs[i].axis('off')

Flatten#

flat = x.view((-1, 64*7*7))
fcn1 = nn.Linear(64*7*7, 128)
fcn2 = nn.Linear(128, 10)
out = fcn1(flat)
out = F.softmax(fcn2(out), dim=1)

# prediction
# assess the prediction
[i.argmax().item() for i in out]

# true label
[i.item() for i in labels]

QUESTION:
Why is it that the true and the predicted value is very distant from each other?

Now let’s put them all together#

class CNN(nn.Module):
    def __init__(self):
        super().__init__() # just the initialization
        self.conv1 = nn.Conv2d(1, 32, (3,3), 1, 1)
        self.pool1 = nn.MaxPool2d((2,2), 2)
        self.conv2 = nn.Conv2d(32, 64, (3,3), 1, 1)
        self.pool2 = nn.MaxPool2d((2,2), 2)
        self.fcn1 = nn.Linear(64*7*7, 128)
        self.fcn2 = nn.Linear(128, 10)
    def forward(self, x): # seuential
        x = F.relu(self.conv1(x))
        x = self.pool1(x)
        x = F.relu(self.conv2(x))
        x = self.pool2(x)
        x = x.view(-1, 64*7*7)
        x = self.fcn1(x)
        x = F.softmax(self.fcn2(x), dim=1) return x

Instantiate the Class#

model = CNN()
model

Model Parameters:

\(quadbegin{align}(1times32times3times3)+32+(32times64times3times3)+64+(3136times128)+128+(128times10)+10 &= 288+32+18432+64+401408+128+1280+10 &= 421,642end{align}\)

def count_parameters(model):
    params = [p.numel()
    for p in model.parameters()
    if p.requires_grad]
    for item in params:
        print(f'{item:>6}')
        print(f'______n{sum(params):>6}')
        count_parameters(model)

Define Criterion and Optimizer#

criterion = nn.CrossEntropyLoss()
optimizer = torch.optim.Adam(model.parameters(), lr=0.001)

# if your device has cuda enabled gpu, you can use it to accelerate the training process.
device = torch.device('cuda' if torch.cuda.is_available() else 'cpu')
print(device)
model = model.to(device)

Let’s walk through the training loop#

for e in range(epochs):
    train_corr = 0
    val_corr = 0

This will iterate 5 times as what is defined below. train_corr and val_corr serves as temporary place holders for correctly predicted train data and correctly predicted validation data. Hence, train_corr and val_corr will be re-initialized to 0 again if an entire epoch is done.

for train_b, (x_train, y_train) in tqdm(enumerate(train_loader)):
    train_b += 1 x_train = x_train.to(device)
    y_train = y_train.to(device)

The second loop (nested loop) iterates over the train_loader. A single iteration of the train_loader is equal to 1 batch of features and targets, our batch size is 10, therefore in every iteration of the train_loader we are processing 10 instances. The entire training set or the len(train_loader.dataset) is 50,000. Therefore, to finish an entire epoch, we need to process 5000 batches with a batch size of 10 (5000 x 10 = 50,000).

NOTE: When an iterable object is wrapped around an enumerate function, the output will return an index for each iterated values. train_b is the number of batches that has been processed. The to() functions next to the x_train and y_train are simply there to move the data into the available computing device. Remember that you need to move the model as well to the available device.

OUTPUT: x_train.shape = torch.Size([10, 1, 28, 28]) y_train.shape = torch.Size([10])

train_pred = model(x_train)
train_loss = criterion(train_pred, y_train)
train_pred_vec = torch.max(train_pred.data, 1)[1]
train_corr += (train_pred_vec == y_train).sum()

train_pred represents the model’s predictions for the current batch. The shape of train_pred is torch.Size([10, 10]). Each row in train_pred corresponds to an instance in the batch, and each column represents a class. The values in each row indicate the model’s estimated probabilities or scores for each class for that instance.

train_loss is a scalar value of the error that was calculated from that particular batch.

train_pred_vec is a vector that contained the predicted labels of the current batch. The values are integer that ranges from 0 to 9. train_pred_vec.shape is torch.Size([10]), the values represents each predicted label of each instance.

train_corr performs comparison operation to check how many samples in the batch was correctly predicted, the value of the train_corr will be inceremented, but will be re-initialized back to 0 when an entire epoch is done.

# Update parameters
optimizer.zero_grad()
train_loss.backward()
optimizer.step()

We need to update the parameters for every batch that passes in every epoch, we can do this by applying zero_grad() to the optimizer, this will clear the gradients for the next batch, if we don’t do that, the gradients will accumulate for every batch for the entire epoch.

train_loss.backward() is used to compute the gradients of the loss with respect to the model’s parameters during the backward pass of the training process. It’s a fundamental step in the training loop of a neural network.

optimizer.step() is a method used to update the parameters (weights and biases) of a neural network model during the training process. It is called after the gradients of the model’s parameters have been computed during the backward pass.

if train_b % 1250 == 0:
    print(f"epoch: {e+1:2} | batch: {train_b:4} | instances: [{train_b*batch_size:6} / {len(train_loader) * batch_size}] | loss: {train_loss.item()}")

    print(f"✅{train_corr.item()} of {train_b*batch_size:2} | accuracy: {round(((train_corr.item() / (train_b*batch_size))) * 100 , 3)}%")

This prints training progress information during each batch iteration in a concise format. It displays the current epoch, batch number, the number of processed instances, the loss, and the accuracy achieved up to that point in training.

train_correct.append(train_corr.item())
train_losses.append(train_loss.item())

Appends current the batch’s train_corr and train_loss on the empty lists outside the epoch.

with torch.no_grad(): for val_b, (x_val, y_val) in enumerate(val_loader):
    val_b += 1 x_val = x_val.to(device)
    y_val = y_val.to(device)
    val_pred = model(x_val)
    val_pred_vec = torch.max(val_pred.data, 1)[1]
    val_corr += (val_pred_vec == y_val).sum()
    val_loss = criterion(val_pred, y_val)
    val_correct.append(val_corr.item())
    val_losses.append(val_loss.item())
    val_acc = val_corr.item() / (len(val_loader) * batch_size)

    if val_acc > best_acc:
    best_acc = val_acc torch.save(model.state_dict(), f"model/best_{model._get_name()}.pth")

    print(f"t📁New best model saved! | accuracy: {best_acc*100}%")
    train_epoch_acc = train_corr.item() / (batch_size * len(train_loader))
    val_epoch_acc = val_corr.item() / (batch_size * len(val_loader))
    train_accs.append(train_epoch_acc)
    val_accs.append(val_epoch_acc)
    print(f'nDuration: {time.time() - start_time:.0f} seconds')

This part of the code performs the evaluation of the trained model for every epoch, the code is quite similar to the training process but without the updating of parameters. The code also have features of saving the state_dict (trained parameters) of the model with best accuracy.

set_seed(42)
epochs = 5
start_time = time.time()
best_acc = 0.0
train_correct = []
train_losses = []
train_accs = []
val_correct = []
val_losses = []

val_accs = [] for e in range(epochs):
train_corr = 0
val_corr = 0

for train_b, (x_train, y_train) in tqdm(enumerate(train_loader)):
    train_b += 1 x_train = x_train.to(device)
    y_train = y_train.to(device)
    train_pred = model(x_train)
    train_loss = criterion(train_pred, y_train)
    train_pred_vec = torch.max(train_pred.data, 1)[1]

    # prediction vector
    train_corr += (train_pred_vec == y_train).sum()

    # Update parameters
    optimizer.zero_grad()
    train_loss.backward()
    optimizer.step() if train_b % 1250 == 0:

    print(f"epoch: {e+1:2} | batch: {train_b:4} | instances:
    [{train_b*batch_size:6} / {len(train_loader) * batch_size}] | loss: {train_loss.item()}")

    print(f"✅{train_corr.item()} of {train_b*batch_size:2} | accuracy:
    {round(((train_corr.item() / (train_b*batch_size))) * 100 , 3)}%")

    train_correct.append(train_corr.item())
    train_losses.append(train_loss.item()) with torch.no_grad():
    for val_b, (x_val, y_val) in enumerate(val_loader):
        val_b += 1 x_val = x_val.to(device)
        y_val = y_val.to(device)
        val_pred = model(x_val)
        val_pred_vec = torch.max(val_pred.data, 1)[1] val_corr += (val_pred_vec == y_val).sum()
        val_loss = criterion(val_pred, y_val)
        val_correct.append(val_corr.item())
        val_losses.append(val_loss.item())
        val_acc = val_corr.item() / (len(val_loader) * batch_size) if val_acc > best_acc: best_acc = val_acc
        torch.save(model.state_dict(), f"model/best_{model._get_name()}.pth")

        print(f"t📁New best model saved! | accuracy: {best_acc*100}%") train_epoch_acc = train_corr.item() / (batch_size * len(train_loader)) val_epoch_acc = val_corr.item() / (batch_size * len(val_loader))

        train_accs.append(train_epoch_acc)
        val_accs.append(val_epoch_acc)
        print(f'nDuration: {time.time() - start_time:.0f} seconds')

plt.figure(figsize=(5,2))
plt.plot(train_accs, label="Train")
plt.plot(val_accs, label="Validation")
plt.xticks(ticks=range(0,5), labels=list(range(1,6)))
plt.xlabel("Epoch")
plt.ylabel("Accuracy")
plt.title("Accuracy per Epoch")
plt.legend() plt.show()

plt.figure(figsize=(5,2))
plt.plot([train_losses[i-1]

for i in range(5000, len(train_losses)+1, 5000)], label="Train")
plt.plot([val_losses[i-1]

for i in range(1000, len(val_losses)+1, 1000)], label="Validation")
plt.xticks(ticks=range(0,5), labels=list(range(1,6)))
plt.xlabel("Epoch")
plt.ylabel("Loss")
plt.title("Loss per Epoch")
plt.legend()
plt.show()

Testing#

true_labels = []
pred_labels = []
with torch.no_grad():
    for b, (x_test, y_test) in enumerate(test_loader):
        x_test = x_test.to(device)
        y_test = y_test.to(device)
        test_pred = model(x_test)
        test_pred_vec = torch.max(test_pred.data, 1)[1] true_labels.append(y_test)
        pred_labels.append(test_pred_vec)

true_labels = torch.cat(true_labels, dim=0)
pred_labels = torch.cat(pred_labels, dim=0)

Classification Matrix#

[v for k,v in train_data.class_to_idx.items()]

true_labels

pred_labels

np.set_printoptions(formatter=dict(int=lambda x: f'{x:3}'))
print(np.array([v for k,v in train_data.class_to_idx.items()]), 'n')
print(confusion_matrix(true_labels.to('cpu'), pred_labels.to('cpu')))

Let’s assess the misses#

true_labels

misses = np.array([])
missed_label = np.array([])

for i in range(len(pred_labels.to('cpu'))):
    if pred_labels[i] != true_labels.to('cpu')[i]:
        misses = np.append(misses,i).astype('int64')
        missed_label = np.append(missed_label, true_labels.to('cpu')[i]).astype('int64')
        len(misses)

wrong = [pred_labels[i].item()

for i in misses[:10]]
missed_images = [test_loader.dataset[j][0]

for j in [i for i in misses[:10]]]
fig, axs = plt.subplots(1, len(missed_images), figsize=(12, 2)) c = 0

for i in missed_images:
    axs[c].imshow(i.view(28, 28), vmin=0, vmax=1)
    axs[c].axis('off') axs[c].set_title(f"{missed_label[c]} as {wrong[c]}") c += 1
    plt.show()

Laboratory Activty#

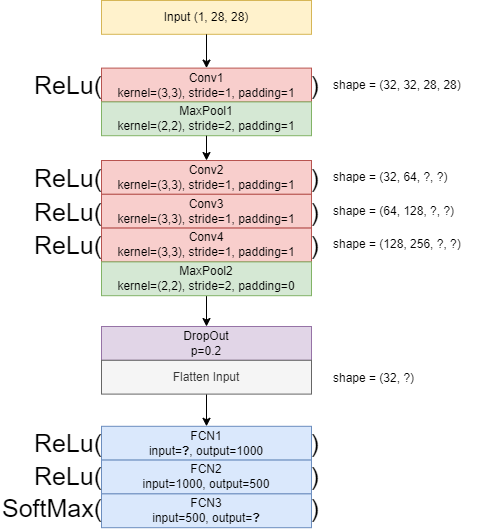

Instruction: Convert the following CNN architecture diagram into a PyTorch CNN Architecture.

imgas
